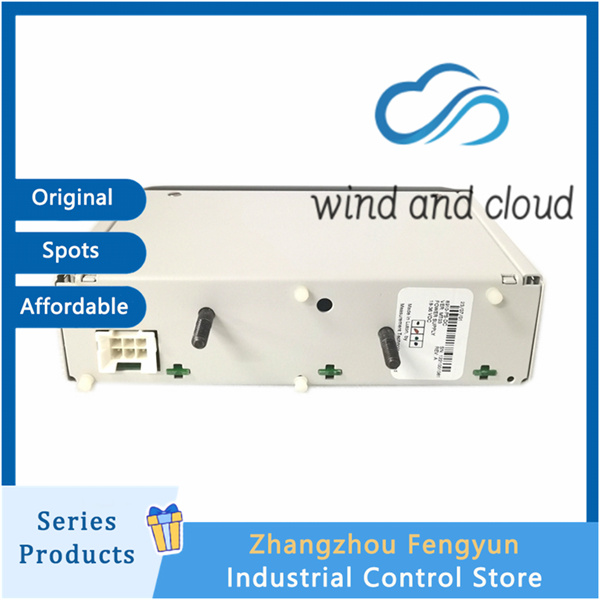

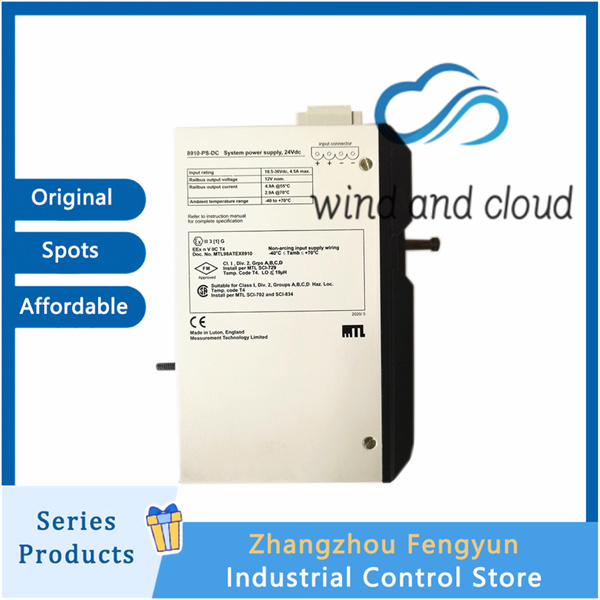

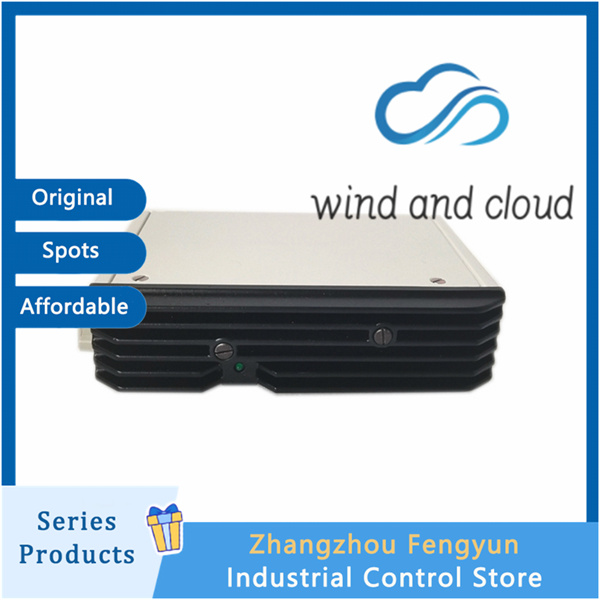

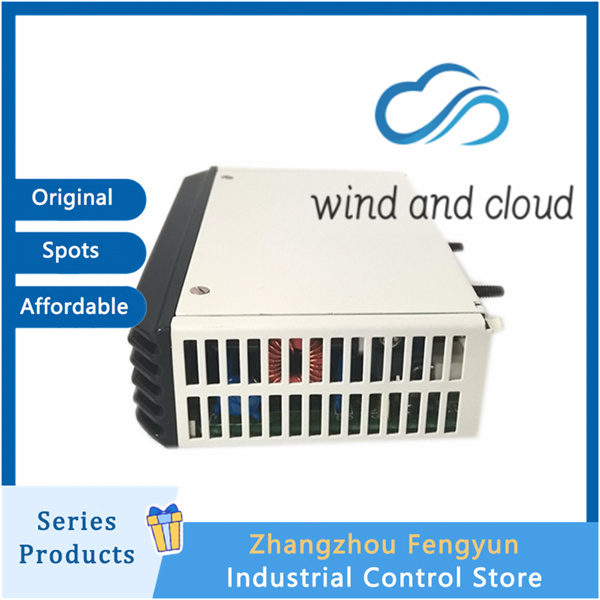

MTL8000 node system power supply provides 12V DC bus power for I/O modules
Input 18.5-36 VDC (compatible with 24V DC nominal on-site power supply)
Output 12 VDC, rated at 4.9 A (approximately 60W), capable of carrying 6-20 I/O modules (depending on module type)
Installation carrier 8711-CA-NS/8712-CA-NS node service carrier (dual power bit), 8717-CA-PS power carrier
Protection against overvoltage/overcurrent/short circuit, reverse connection protection
Environmental working -20 ° C to+60 ° C; humidity 10% -95% RH (non condensing); IP20 (Panel Installation)
Certified CE, UL 1604 Class I Div 2, ATEX, IEC 61010, suitable for hazardous areas
Mechanical adaptation MTL8000 standard guide rail/panel installation, size matching carrier slot position
I/O bus power supply: Convert 18.5-36 VDC input to stable 12 VDC to provide bus power for MTL8000 I/O modules (including intrinsic safety modules).
Multiple safety protections: overvoltage/overcurrent/short circuit protection to prevent module and load damage; Reverse connection protection prevents wiring errors from burning out modules.
Adaptation to hazardous areas: Adapt to intrinsically safe I/O systems, in conjunction with carriers and isolation modules, to ensure explosion-proof on-site power supply safety.
Flexible expansion: A single carrier can accommodate 2 units, supporting multi power load sharing and adapting to large-scale I/O nodes.
