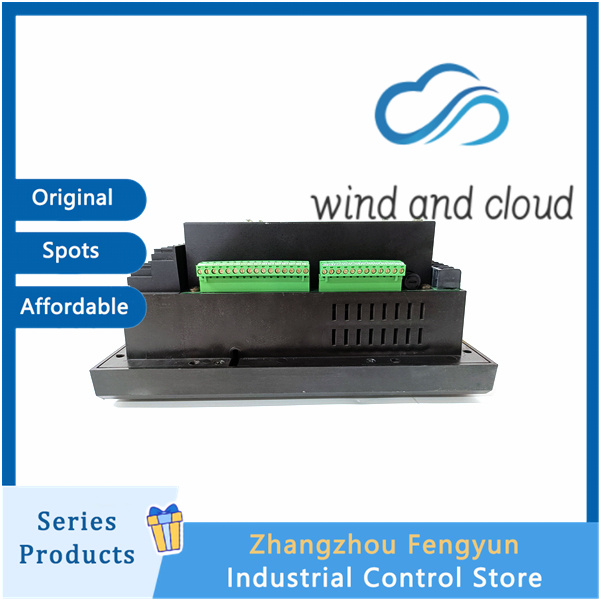

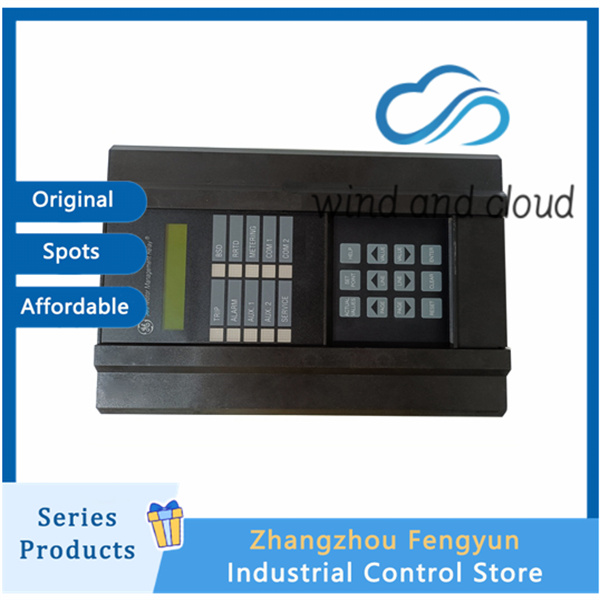

GE 369-HI-0-M-0-0｜Motor Management Relay｜
Power Supply
Control Power Supply: 50–300 VDC or 40–265 VAC, 50/60 Hz
Input Measurements
Current Input: 1 A / 5 A secondary (switchable)
Voltage Input (M Kit): Phase voltage input
VT Maximum Ratio: 240:1
Analog Outputs
Standard: 1 analog output channel
With Metering Kit (M Kit): 3 analog output channels
Common Circuit: Shared common reference
Digital Inputs
Isolation: 6-channel opto-isolated digital inputs
Contact Types: Compatible with dry and wet contacts
Digital Outputs
Relay Outputs: 4 programmable relay outputs
2 × 5 A / 250 VAC
2 × 10 A / 250 VAC
Communication
Interface: RS232
Software: EnerVista™ 369
Protocol Support: Native only (no additional communication protocols)
Protection Functions
Overload protection with FlexCurve™
Stalled / Jammed rotor protection
Ground fault protection
Current imbalance protection
Phase loss protection
Underload protection
Advanced thermal model protection
Startup suppression protection
Monitoring & Metering (M Kit)
Real-time monitoring of:
Voltage
Current
Power
Energy consumption
Power factor
Event Records: Up to 512 events
Waveform Capture: 3 buffers × 16 cycles
Installation & Mechanical
Mounting: Panel-mounted
Dimensions (W × H × D): Approx. 210 × 110 × 300 mm
Enclosure: Metal housing
Weight: Approx. 4.5 kg
Environmental & Safety
Operating Temperature: –25 °C to +70 °C
Ingress Protection: IP30 (panel-mounted)
Insulation Class: Class I
Key Features
Self-learning of motor parameters
Advanced thermal motor protection model
Startup data logging and analysis
