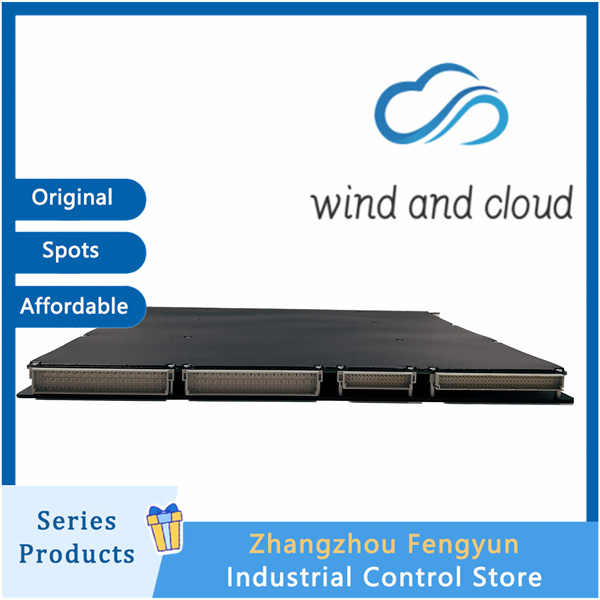

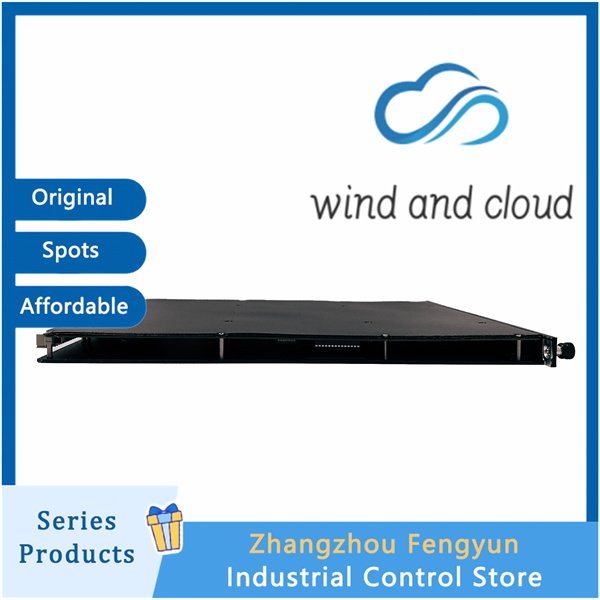

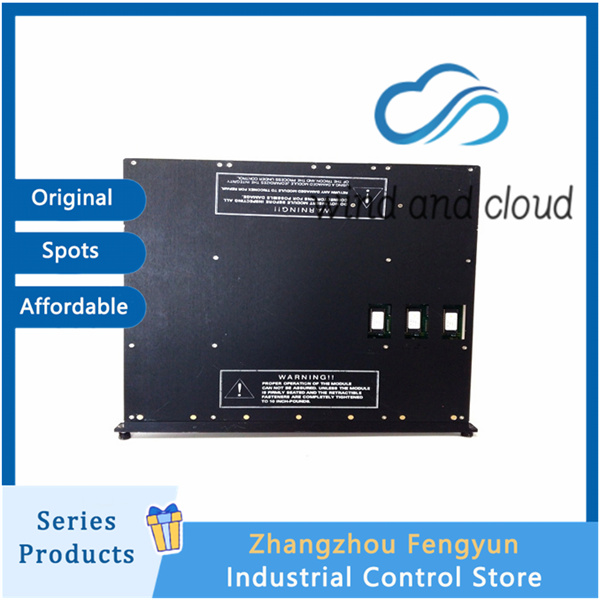

TRICONEX 3503E｜Digital Input Module｜
Key Features & Functions
🔹 Triple Modular Redundancy (TMR) Architecture
Each input signal is processed by three independent channels with a 2-out-of-3 voting mechanism.
Ensures fault-tolerant operation; system continues even if one channel fails.
Designed to meet functional safety requirements (SIL-3) under IEC 61508 standards.
🔹 Digital Signal Acquisition
Provides 32 isolated digital input channels.
Accepts standard field signals (e.g., dry contacts, 24 VAC/DC level switches, proximity sensors).
Inputs are grouped in sets (often 8 per common group) for structured wiring.
🔹 Isolation & Diagnostics
Optically isolated inputs maintain signal integrity and prevent electrical interference.
Built-in diagnostics detect faults such as open circuits or signal anomalies.
Modular indicators (status LEDs) help local troubleshooting.
🔹 Fast Response & Reliability
Response time typically < 10 ms for signal state changes.
Engineered for harsh industrial environments with wide operating temperatures.
🔹 Hot-Swappable Modular Design
Enables module replacement or maintenance without powering down the entire safety system.
Compact form for rack/chassis mounting within Triconex platforms.
Typical Specifications
These reflect commonly published characteristics for the 3503E module.
Parameter Typical Value
Module Type Digital Input Module (TMR)
Input Channels 32 isolated channels
Input Voltage 20–42.5 VAC/DC (nominal 24 VAC/DC)
Input Frequency DC up to ~47–63 Hz
Response Time < 10 ms
Input Impedance > 1.25 kΩ typical
Isolation ≥ 1500 VDC point isolation
Operating Temp. −40 °C to +70 °C
Redundancy Triple Modular Redundancy (TMR)
Mounting Triconex chassis / rack
Diagnostics Self-test and fault indication
Safety Level SIL-3 (IEC 61508)
Compliance IEC/EN standards for industrial safety
Typical Applications
Safety Instrumented Systems (SIS) — emergency shutdown (ESD), fire & gas (F&G) interlocks
Process Automation & Protection — petrochemical, oil & gas, chemical plants
Power Generation — turbine trip systems, critical interlocks
Industrial Control & Monitoring — discrete equipment status, safety switch monitoring
The 3503E is often used where high integrity, redundant input acquisition is required to support safety and plant availability.
TRICONEX 3503E｜Digital Input Module｜
By structuring the information in this manner, the article provides a clear and organized understanding of input channels, transducer supply, and communication implementations in distributed control systems.
