Functions and Applications
Multi sensor compatibility: Suitable for eddy current sensors (displacement, vibration, eccentricity, etc.) and seismic sensors (velocity/acceleration) to meet different monitoring needs.
High precision signal processing: 24 bit resolution, independent channel signal filtering, amplification, linearization, reducing inter channel interference, ensuring measurement accuracy.
Programmable alarm and protection: supports custom alarm thresholds, and outputs protection signals through the 3500 framework when triggered to prevent equipment failure.
Flexible configuration and integration: Channel paired programming, support for voting logic (1oo1/2O2), seamless integration with 3500 framework and System 1 software.
Fault diagnosis and maintenance: The LED indicator light displays the operating status, supports hardware and sensor fault diagnosis, and facilitates quick troubleshooting.
Key points of engineering configuration and wiring
Hardware Installation
Installed in the corresponding card slot of the 3500 frame, paired with the rear terminal board to ensure normal power supply and communication of the backplane.
Sensor side: Connect the eddy current sensor probe, extension cable, and preamplifier to the rear terminal board; The earthquake sensor is directly connected to the rear terminal board, and the shielded wire is grounded at one end to avoid electromagnetic interference.
Software Configuration (System 1)
Register the front-end module and back-end terminal board, assign backplane addresses, and pair up channel measurement types, sensitivity, range, and alarm thresholds.
Configure 4-20mA/0-10V output range to match external control system requirements.

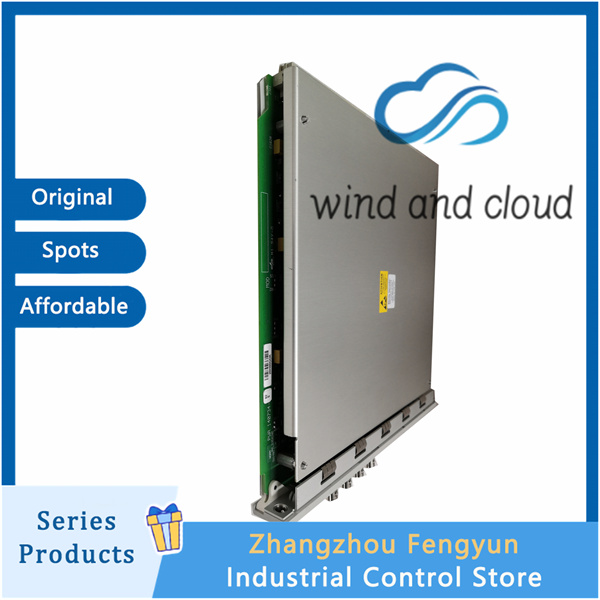

Bently Nevada 3500/42M 176449-02｜Proximitor Seismic Monitor｜
