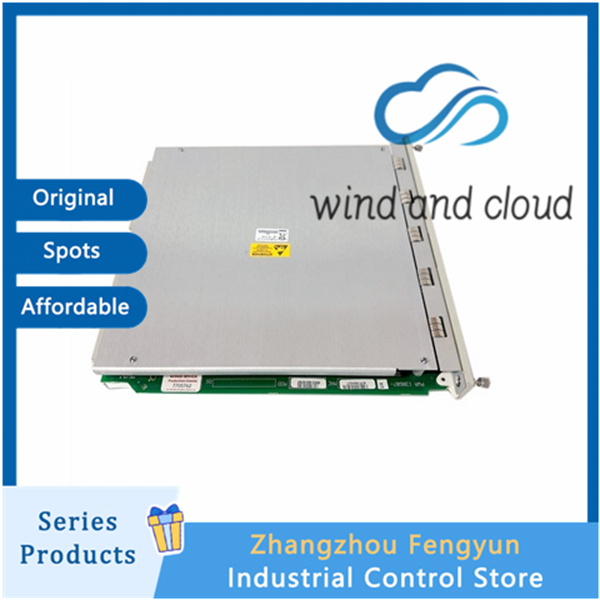

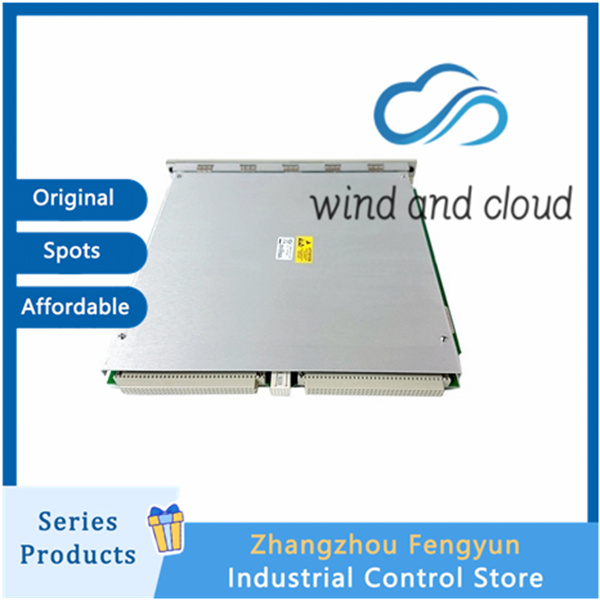

Bently Nevada 3500/22M 138607-01｜Transient Data Interface Module｜
Core functionality
Rack management: Integrated 3500 rack communication bus, supports RUN/GRAM mode switching (with keylock configuration), provides rack reset button to ensure stable system operation.
Data acquisition and transmission: Continuously collect steady-state data (such as vibration, displacement, speed) and transient waveform data from the M series monitor, upload the data to System 1 software through Ethernet/fiber optic Ethernet, and support transient data recording for pre alarm 20 seconds and post alarm 10 seconds.
System diagnosis: Real time monitoring of module operation status and communication link quality, feedback of alarm/fault information through LED indicator lights, facilitating quick problem localization.
Configuration and Debugging: The front USB-B interface supports local configuration, and the Ethernet interface supports remote debugging and parameter modification, adapting to on-site maintenance needs.
Redundancy support: Supports communication link redundancy (Ethernet+fiber optic), automatically switches when the main link fails, and improves data transmission reliability.
Application scenarios
Power generation industry: monitoring the status of gas/steam turbines and generators, collecting data on vibration, shaft displacement, etc., diagnosing faults through System 1 software, and preventing unplanned shutdowns.
Petrochemical industry: protection system for rotating machinery such as compressors, pumps, fans, etc., adapted to high temperature, high pressure, and high vibration conditions, ensuring long-term operation of equipment.
Metallurgical industry: monitoring the status of key equipment such as rolling mills and motors, supporting production scenarios with large load fluctuations and complex working conditions, and improving equipment reliability.
Remote operation and maintenance: Implementing remote monitoring and troubleshooting of devices through Ethernet, reducing on-site operation and maintenance costs, and shortening fault handling time.
Bently Nevada 3500/22M 138607-01｜Transient Data Interface Module｜
By structuring the information in this manner, the article provides a clear and organized understanding of input channels, transducer supply, and communication implementations in distributed control systems.
