Name: GE 350-E-P5-S5-HESNP-1E-NH｜Feeder Protection System｜
SKU: 350-E-P5-S5-HESNP-1E-NH abb
Price: 5900.00 USD
Availability: InStock

a Our company specializes in importing industrial control spare parts, and we can help you transfer most of them from abroad. Due to the wide variety of models, we were unable to upload physical pictures one by one!
If the model you need cannot be found in our store, please feel free to inquire at any time.

GE 350-E-P5-S5-HESNP-1E-NH｜Feeder Protection System｜

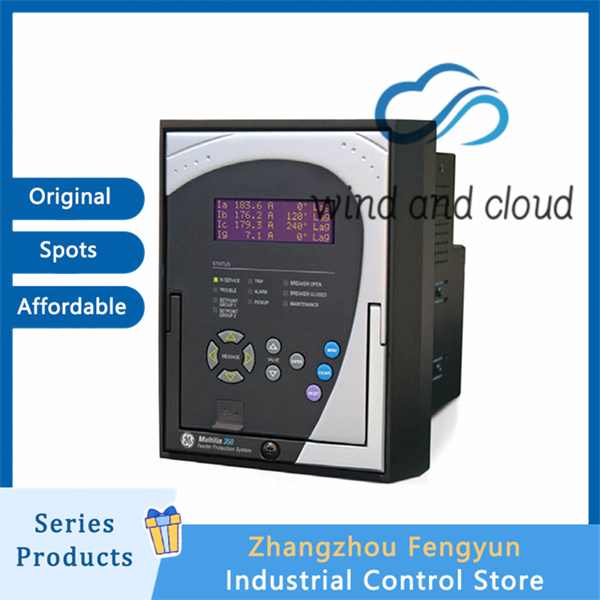

GE 350-E-P5-S5-HESNP-1E-NH｜Feeder Protection System｜illustration

1. Power supply and power consumption
Control power supply: 125-250 VDC/120-240 VAC, 50/60Hz
Power consumption: nominal 15VA, maximum 30VA
Overvoltage category: II; Pollution level: II
Fuse: 3.15A H 250V (user replaceable)

2. Current/voltage input
Phase current input: 3 channels, CT secondary side 5A (1A optional), input range 0-65A, CT variable ratio programmable
Grounding/Neutral Current: 1 independent 5A input
Voltage input: 3-channel three-phase voltage (100-480V AC, programmable)
Measurement accuracy: current/voltage ± 0.5%, power ± 1.0%

3. Input/output interface
Digital input: 10 channels of photoelectric isolation dry contact input
Relay output: 7 channels (2 Form A+5 Form C), contact capacity 5A/250VAC
Analog output: 1 channel 4-20mA (non isolated)
Communication interface: Ethernet (10/100Base-T), RS485, USB; Supports Modbus RTU/TCP, DNP3.0, IEC 60870-5-104, IEEE 1588 PTP synchronization
Display: 40 character LCD+status LED (trip, alarm, running, fault)

4. Measurement function
Electrical parameters: three-phase current/voltage, power (kW/kvar/kVA), power factor, frequency, demand
Electricity metering: active/reactive kWh/kvarh, time of use billing
Monitoring: Voltage imbalance, current imbalance, abnormal frequency

GE 350-E-P5-S5-HESNP-1E-NH｜Feeder Protection System｜
