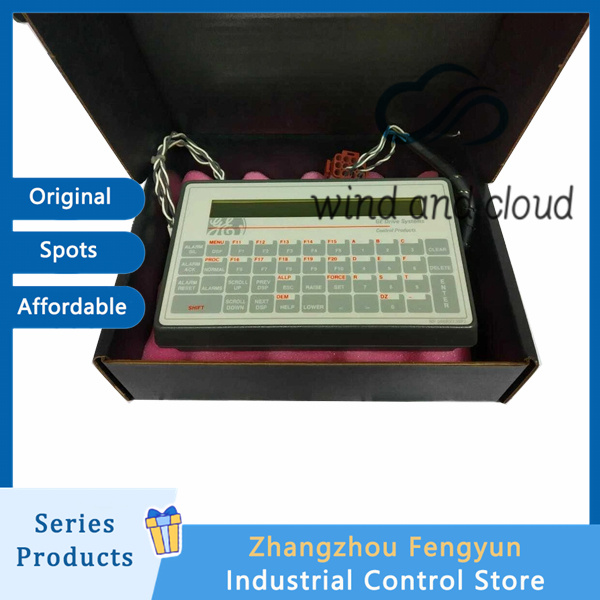

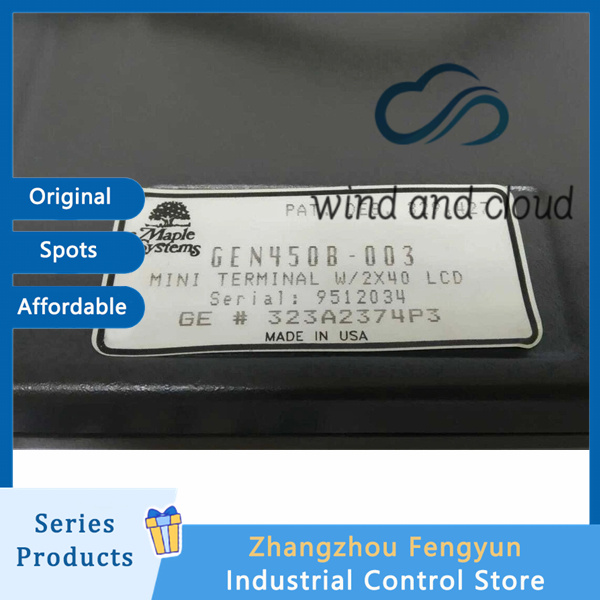

GE 323A2374P3｜Mini-Terminal Control Display｜
1. Display and operation
Display screen: monochrome LCD, displaying 2 lines x 40 characters
Keyboard: 4-row touch sensitive film keys, including F1-F20 function keys, numeric keys, up and down scroll keys, and Shift key (Shift key enables multifunctional switching of keys)
Interface: One side integrates dedicated connectors and wiring terminals for system connection
Installation: Screw fixed, can be directly installed on the control cabinet panel
2. Electrical and Environmental
Power supply: Powered by the Mark V control system backplane (without independent power input)
Working temperature: 0 ℃~+60 ℃
Storage temperature: -40 ℃~+85 ℃
Humidity: 5%~95% (non condensing)
Protection level: IP20 (indoor installation)
3. Physical dimensions
Appearance: Approximately 145mm x 85mm x 35mm (length x width x thickness)
Weight: Approximately 0.3kg
3、 Functions and Applications
Core functions:
View real-time operating parameters of the Mark V system (speed, temperature, pressure, alarms, etc.)
Local system parameter settings, calibration, start stop control
View and clear fault alarms and event records
Collaborate with the Mark V system to monitor and operate the gas turbine
