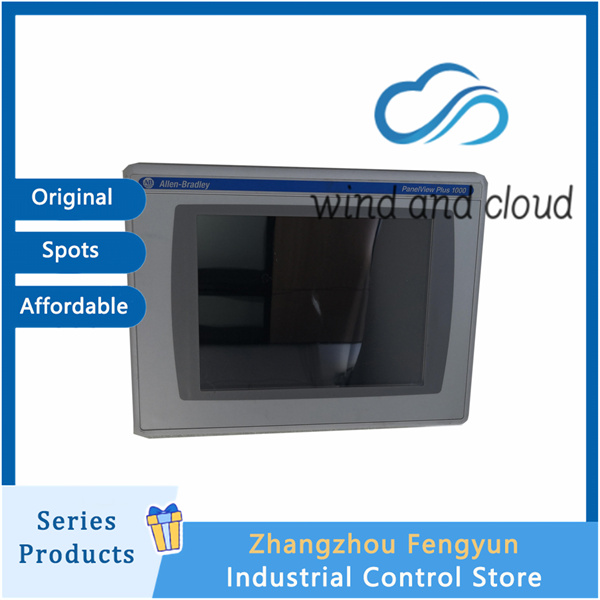

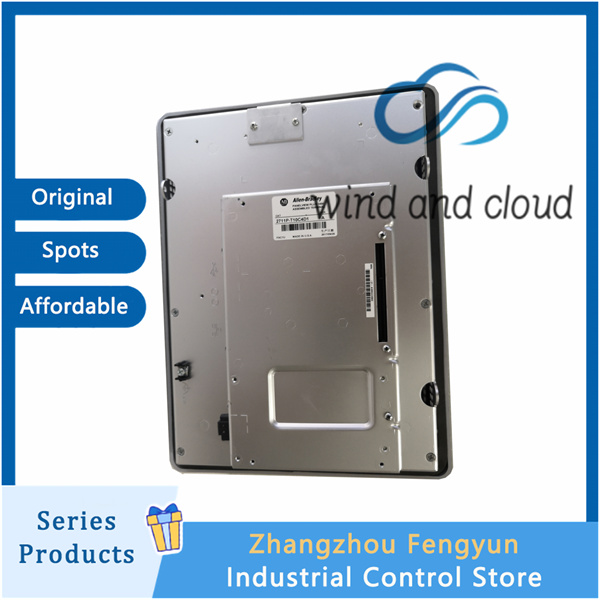

Display Performance

The terminal is equipped with a 10.4-inch color TFT LCD featuring a resolution of 800 × 600 pixels (SVGA) and 18-bit color depth. With a typical brightness of 300 cd/m², the display ensures clear visibility of industrial data and process graphics.
An integrated LED backlight provides a service life of approximately 50,000 hours. The device uses an analog resistive touchscreen with an operating force of 100 g and a rated touch life of up to 10 million activations, ensuring durability under frequent industrial use.

Hardware Configuration

The terminal is equipped with 512 MB of RAM and 512 MB of internal storage. It supports data backup and firmware upgrades via SD card, with the SD card slot compatible with 1784-SDx series memory cards.
For communication and expansion, the device provides:

Two 10/100 Base-T Ethernet ports, supporting star and ring network topologies

Two USB 2.0 host ports and one USB 2.0 device port, allowing convenient connection of external peripherals such as USB drives, keyboards, and other accessories

Power Requirements

The unit operates on a 24 V DC power supply and complies with PELV/SELV safety standards. The maximum power consumption is 50 W, making it suitable for standard industrial DC power environments.

Size and Weight

Dimensions (W × H × D): 252 × 297 × 69.6 mm

Weight: Approximately 2.28 kg

Functional Features

The terminal includes six built-in language interfaces, with additional languages expandable via Flash memory. It is fully compatible with Rockwell Automation PowerFlex® series variable frequency drives and Logix automation systems, supporting remote monitoring, diagnostics, and parameter configuration.
Additionally, the device integrates online help screens, enabling operators and maintenance personnel to quickly access advanced configuration, troubleshooting, and maintenance functions.
